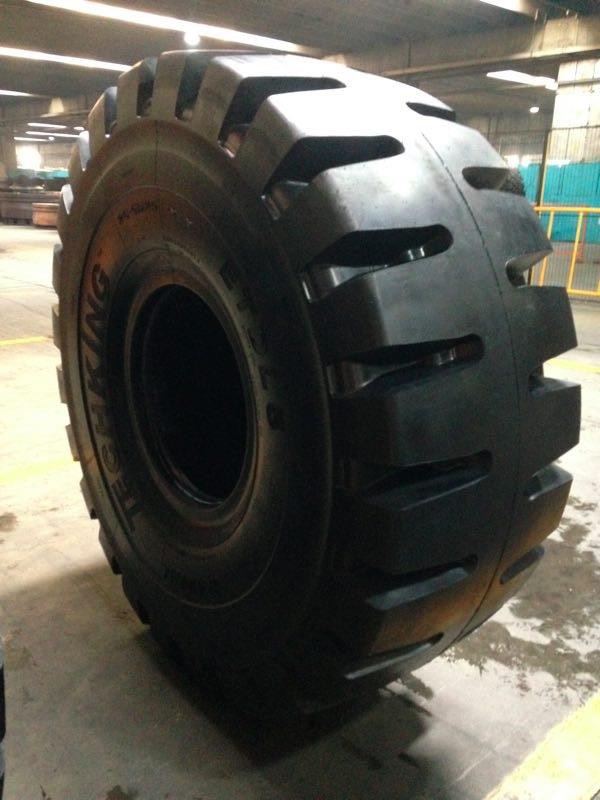

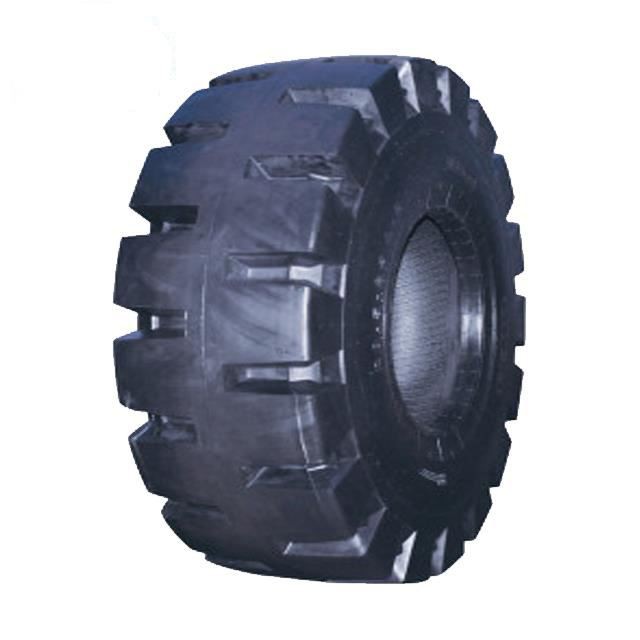

bkt otr tires
L5 pattern otr tire 26.5-25 23.5-25
Product Feature
The bead of the bkt otr tires can be installed on the rim, which consists of the bead core, the cord covering and the bead covering. It can withstand the extension tension caused by the internal pressure, and at the same time can overcome the lateral force of the tire during cornering. Compared with ordinary product on the market, it has the advantage of high strength. And the structure is tight and firm, which is not easily deformed.
Product Description
The bkt otr tires provide various kinds of size options, thus providing more choices to meet need. Due to the proper size and compact design, it can be placed everywhere in order to help release space of limited places. In addition, it is composed of an outer tube, an inner tube, and a cushion. The inner layer of the inner tube has a rubber layer with good air tightness, and a special rim is required. The structure of tires ensures longer service life for use and there is no special need of maintaining. The ply laye is a cloth layer composed of side-by-side rubber cords in the carcass. It is a stress frame layer of the tire to ensure that the tire has the necessary strength and dimensional stability.
|
SIZE |
STANDARD |
PLY |
TREAD DEEPTH (mm) |
INFLATED SIZE OF NEW TIRE(mm) |
MAX LOAD (Kg) |
RELATIVE (Kpa) |
Speed |
Type |
PATTERN NO. |
|
|
SECTION |
OVERALL |
|||||||||
|
26.5-25 |
22.00/3.0 |
28 |
82 |
675 |
1800 |
15500 |
475 |
50/10 |
TT/TL |
GW168 L-5 |
|
23.5-25 |
19.50/2.5 |
28 |
76 |
595 |
1675 |
16300 |
550 |
50/10 |
TT/TL |
|
|
23.5-25 |
19.50/2.5 |
24 |
76 |
595 |
1675 |
12500 |
475 |
50/10 |
TT/TL |
|
|
20.5-25 |
17.00/2.0 |
24 |
68 |
520 |
1550 |
10300 |
525 |
50/10 |
TT/TL |
|
|
20.5-25 |
17.00/2.0 |
20 |
68 |
520 |
1550 |
9500 |
450 |
50/10 |
TT/TL |
|
|
17.5-25 |
14.00/1.5 |
20 |
63 |
445 |
1400 |
8250 |
575 |
50/10 |
TT/TL |
|
|
17.5-25 |
14.00/1.5 |
16 |
63 |
445 |
1400 |
7300 |
475 |
50/10 |
TT/TL |
|
