Skid steer tires

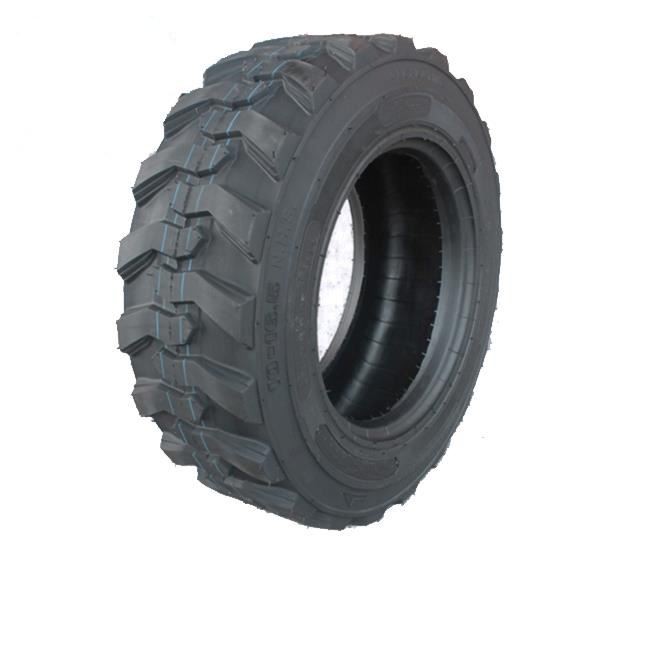

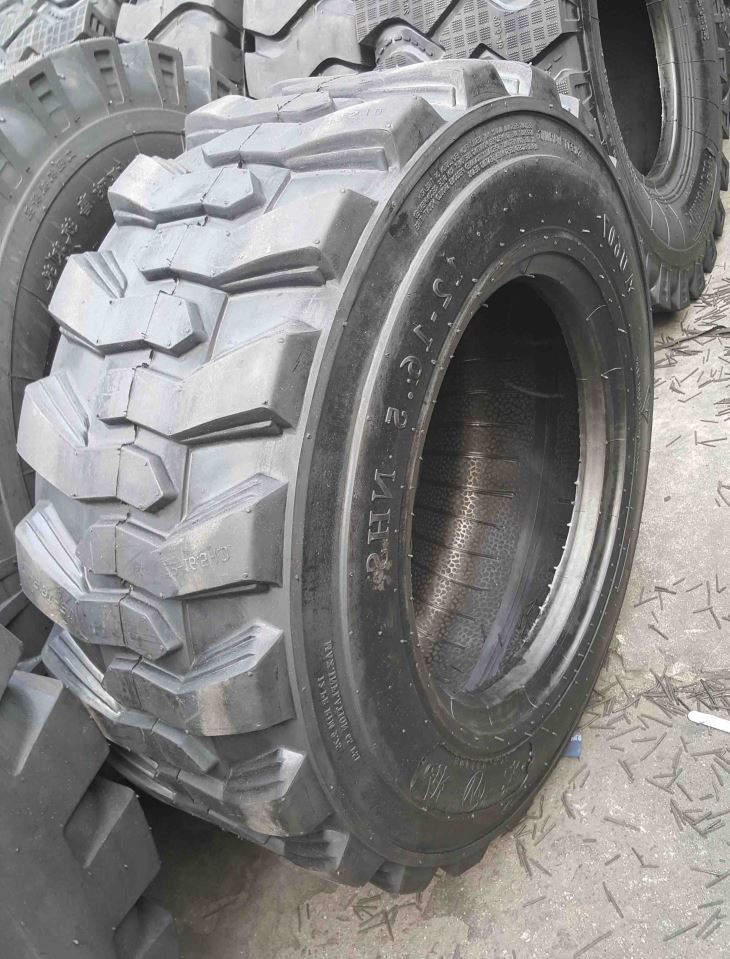

10-16.5 12-16.5 14-17.5 11L-16 SKS-1 Skid Steer Industrial Tyre
10-16.5 12-16.5 14-17.5 11L-16 SKS-1 Skid Steer Industrial Tyre
|
SIZE |
STANDARD RIM |
PLY RATING |
TREAD DEEPTH(mm) |
INFLATED SIZE OF NEW TIRE(mm) |
MAX LOAD(Kg) |
RELATIVE PRESSURE(Kpa) |
Type |
PATTERN NO. |
|
|
SECTION WIDTH |
OVERALL DIAMETER |
||||||||
|
15-19.5 |
11.75 |
14 |
22 |
390 |
1020 |
4565 |
480 |
TL |
GW288 SKS-1 |
|
14-17.5 |
10.50 |
14 |
22 |
350 |
920 |
3875 |
550 |
TL |
|
|
12-16.5 |
9.75 |
10 |
21 |
307 |
840 |
2540 |
450 |
TL |
|
|
10-16.5 |
8.25 |
8 |
21 |
264 |
770 |
1880 |
410 |
TL |
|
Product Feature
The Skid steer tires have the advantage of high load capacity, good buffering ability, great traction, good braking ability, good turning ability, directional stability ability, good abrasion resistance, durability, safety and low rolling resistance. In order to improve the off-road passability, measures such as widening the tire cross section and the rim diameter are generally adopted in order to increase the ground contact area, thus to reduce the ground contact pressure.
Product Description
The Skid steer tires feature advanced process, which has longer service life for use and there is no special need of maintaining. In addition, there are various kinds of size options, thus providing more choices to meet need. Due to the compact design and proper size, it can be placed everywhere in order to help release space of limited places. Compared with ordinary product on the market, it id specifically designed for high speed operation, with high and reliable performance.
